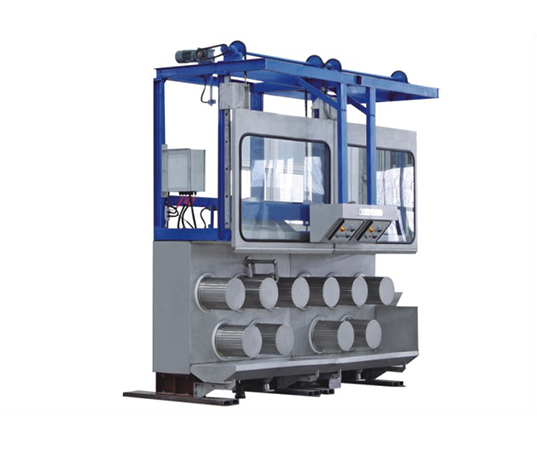

DQS series of drawing machine

DQS series stretching machine is stretching the fiber tow that coming from

the spinning machine in certain draft ratio, meet the requirements of

the production process.

Equipment structure:

1.Stretching roller: Roller body is made by 904L,the surface with a longitudinal groove.

2.Driving: Each stretch roller is driven and controlled by a single frequency conversion motor.

3.Frame:Steel-welded frame, surface covered by 2mm-thick 904L plate.

4.Spray device and collecting tank:Spray branch pipe with the roller body in parallel, add the water to the drafting roller surface. External adopts flange connection (take lenzing spray form and the liquid receiving tank exhaust form)

5. Suction hood: Made by 316L stainless steel, eliminate the waste gas produced by tow.

6. Sealing window:The window frame is made by 316L, glass uses toughened glass, motor drive; guaranteed the quality of sealing and ensure no leak of gas.

Technical Parameters:
